| แสงสูง: | cargo inspection,baggage x ray machine |
||
|---|---|---|---|
Extremely good performance Baggage and Parcel Inspection with high resolution
Quick details
| Tunnel Size: | 800(W)*650(H)mm/ 1000(W)*800(H)mm/1000(W)*1000(H)mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 200kg |
| Dose per Inspection: | <2.0 μSv |
| Resolution: | 38AWG guaranteed 40AWG typical. |
| Spatial resolution: | Level: dia1.0mm, Vertical: dia1.0 mm (AT8065B/ AT10080B)
Level: dia1.0mm, Vertical: dia1.0 mm (AT100100B) |
| Penetration: | 38mm steel guarantee, 40 mm Steel typical (AT8065B/ AT10080B) 34mm steel (AT100100B) |
| X-ray Leakage: | <0.1 μSv/h (at a distance of 5cm from external housing) |
| Advantage: | TIP optional & High density alarm& Explosives alarm |

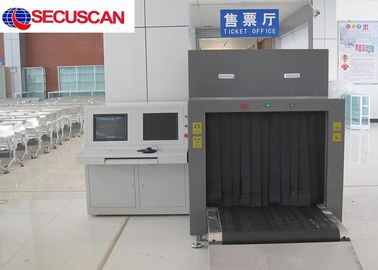

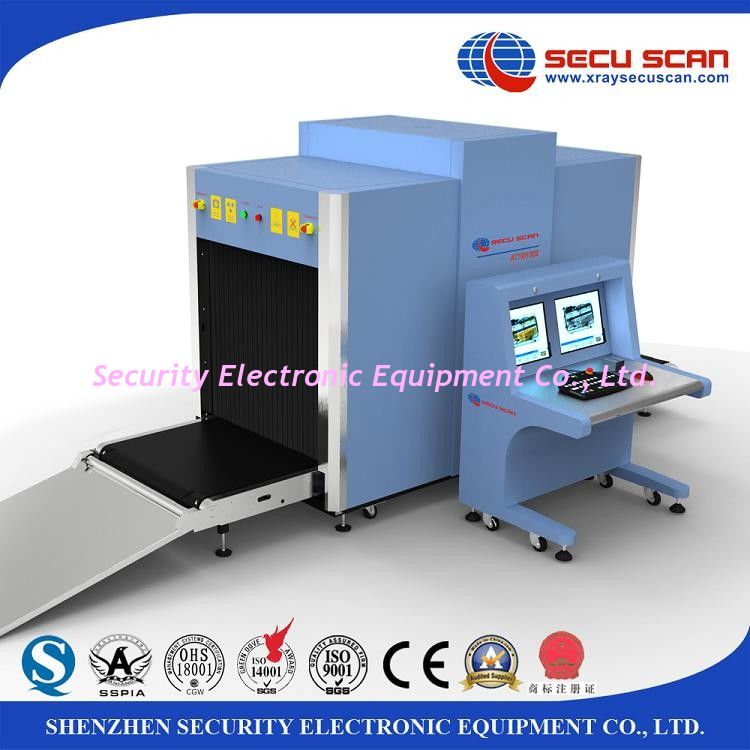

X - ray Baggage Inspection Scanners AT8065B/ AT10080B/ AT100100B have extremely high performance, Special for aviation and logistics system.
X-ray Generator
● Generate direct: Upward
● Generate anger: 80 degree
● Anode Voltage: 100~160Kv
●Anode power: 0.4 to 1.2mA
● Cooling / Duty Cycle: Oil Cooling /100%
Image System
● X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
● Monitor: High Resolution Color, LCD Accord, 17 inch
● Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
● Image Grey Level: 4096
● Image Max Resolution: 1024 * 1280 pixel
● Image Processing: 24bit for processing real time
● Image storage: Storage 60000 pictures in real time
● Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
● Multi-energetic distinguish objects : organic objects in orange, inorganic objects in blue, mixture in green
● High-energy/low energy : switch from high energy to low energy
● Assist to detect drug and explosive powder
Installation Data
● Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
● Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
● Operation Power: 220VAC(±10%)50±3Hz
● Power Consumption: 1.0 KW (max), 0.7KW(working)
● Noise: <58db
